xts_device_attest_lite module

• Introduction
• Directory Structure
• Architecture diagram
• Constraints
• Integration guidance
  • Terminology
  • Partner completes information registration
  • Dependent interface adaptation
  • External interface
  • Compilation instruction
    • mini
    • small
• Repositories Involved

Introduction

xts_device_attest_lite module：

• The basic function of the xts_device_attest_lite module is to take care of the OpenHarmony ecological device attest results, and achieve the goal of counting the number of OH ecological devices through the cloud of end data. The purpose is to count the number of OH equipment. xts_device_attest_lite module applies to mini system and small system.

Directory Structure

/test/xts
├── device_attest_lite
│   └── build                   # Compile configuration
│   └── figures
│   └── framework               # System capability service framework
│       └── mini                # Mini system service framework
│       └── small               # Small system service framework
│   └── interfaces              # External interface
│   └── services                # Service subject and business logic code
│       └── core                # Business logic code
│   └── test
│       └── startup             # Small system startup example
│       └── unittest            # Test case

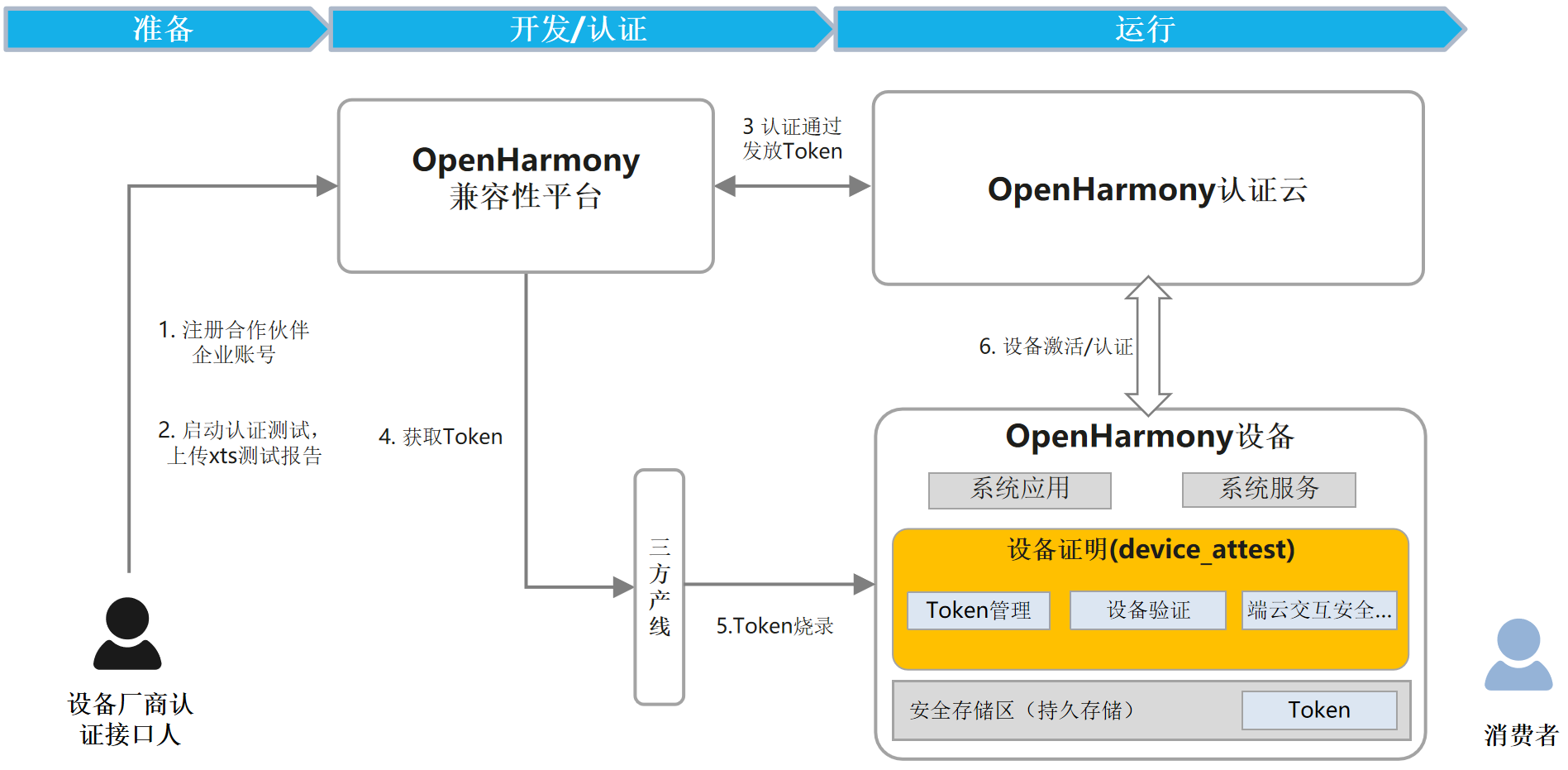

Architecture diagram

Constraints

The integration dependency library is shown in the following table:

Library	Version	Function description	Note
mbedtls	2.16.11	A lightweight implementation library of TLS protocol for embedded devices.	Library path..\third_party\mbedtls
cJSON	1.7.15	JSON file resolution library.	Library path..\third_party\cJSON\third_party
libsec	1.1.10	Security function library.	Library path..\bounds_checking_function
parameter	OpenHarmony 1.0+	System interface for obtaining device information.	Library path ..\base\startup\init\interfaces\innerkits\include\syspara\parameter.h

Integration guidance

Terminology

table 1

Term	Explain
partners	Enterprises applying for OpenHarmony compatibility evaluation are hereinafter collectively referred to as "partners". It is required to integrate xts_device_attest_lite module.
manuKey	The secret key obtained by partners from the official website of the OpenHarmony compatibility platform. It is used to encrypt and protect relevant data in the product. To ensure the compatibility of multiple products, manuKey should remain unchanged during the life cycle of all products.
productId	When a partner applies for compatibility evaluation from the official website of the OpenHarmony compatibility platform, the platform assigns a unique product identifier to the evaluation product. The productId must remain unchanged throughout the product life cycle.
productKey	When partners apply for compatibility evaluation from the official website of the OpenHarmony compatibility platform, the platform assigns the unique product secret key to the evaluation product. It corresponds to the productId one by one, and is used to encrypt and protect product level data. It is also necessary to ensure that it remains unchanged throughout the product life cycle.
token	The partner obtains the device credentials allocated by the platform from the official website of the OpenHarmony compatibility platform, one for each device, to identify the device identity. It needs to be stored in the security partition, and cannot be cleared when the factory settings are restored or the image is upgraded.

Partner completes information registration

Partners need to register a series of basic information about product equipment on the OpenHarmony compatibility platform, such as 公司简称（英文）, 品牌英文名称, 设备型号, etc. In the equipment certification processing process, the equipment certification module reads the equipment information and reports it to the foundation cloud, which verifies it. Therefore, partners are required to complete product information registration on the official website of the OpenHarmony compatibility platform in advance, including the following two steps:

1）Partners complete device information registration on the official website of OpenHarmony compatibility platform.
2）Partners write the device information registered on the official website of the OpenHarmony compatibility platform to the device.

1. Partners complete information registration on the OpenHarmony compatibility platform

   Partners need to register relevant equipment certification data on the OpenHarmony compatibility platform, please follow the registration process on the official website.

2. Partners writes the registered OS information to the device

   For the information registered by partners on the OpenHarmony compatibility platform, the version package provides relevant interfaces for partners to fill in. When calling the xts_device_attest_lite function, the value filled in by the partner will be reported to the foundation cloud, which will compare and verify the information registered in the previous section with the information reported by the device. xts_device_attest module depends on some device information and needs to be adapted and modified by partners.
   Device information is located in the startup subsystem file: base/startup/init/services/etc_lite/param/ohos_const/ohos.para.The device OS information is shown in the following table：

table 2

Device information	ohos.para configuration parameter	Note
发布类型	const.ohos.releasetype=Beta	Use default
api版本	const.ohos.apiversion=6	Use default
安全补丁标签	const.ohos.version.security_patch=2021-09-01	2021-09-01 replace with real value
软件版本号	const.ohos.fullname=OpenHarmony-1.0.1.0	Use default

Device product information is located in the vendor subsystem file: vendor/hisilicon/hispark_pegasus/hals/utils/sys_param/vendor.para.The device product information is shown in the following table：

table 3

Device information	vendor.para configuration parameter	Note
企业简称（英文）	const.product.manufacturer=****	**** replace with real value
品牌英文名	const.product.brand=****	**** replace with real value
设备型号	const.product.model=****	**** replace with real value
软件版本号	# const.product.software.version="OpenHarmony 1.0.1" const.product.software.version=OpenHarmony 3.3.3.3	"OpenHarmony 1.0.1" replace with real value
版本 id		No partner operation is required, and the system automatically generates
版本 Hash	const.ohos.buildroothash=default	default replace with real value

Note：版本 id needs to be obtained through equipment, Fill in the OpenHarmony compatibility platform, 版本 id consists of： VersionId = deviceType/manufacture/brand/productSeries/OSFullName/productModel/softwareModel/OHOS_SDK_API_VERSION/incrementalVersion/buildType

Get 版本 id:
1) OS information and product information writing device
2) Release encrypted log(Modify the modification of PrintDevSysInfo in the following figure)
3) Burn
4) View 版本 ID through logs

View 版本 ID through logs

Dependent interface adaptation

In order to shield the differences in the underlying implementations of different modules, vendor defines token related APIs, which are implemented by partners through adaptation. The interface definitions are shown in the following table：

table 4 |

Function	Interface definition	Parameters definition	Return value	Belong to
Read manuKey	int32_t HalGetManufactureKey(char* manuKey, uint32_t len)	acKey：Secret key storage memory len：memory length	0：success -1：fail	..\hal_token.h
Read ProductId	int32_t HalGetProdId(char* productId, uint32_t len)	productId：Product model identification len：memory length	0：success 1：fail	..\hal_token.h
Read token	int32_t HalReadToken(char* token, uint32_t len);	token：Token storage memory len：memory length	0：success 1：fail	..\hal_token.h
Write token	int32_t HalWriteToken(char* token, uint32_t len);	token：Token storage memory len：memory length	0：success 1：fail	..\hal_token.h
Read ProductKey（Reserved interface）	int32_t HalGetProdKey(char* productKey, uint32_t len)	productKey：Product (Unique) Secret Key len：memory length	0：success 1：fail	..\hal_token.h

1. HalGetManufactureKey
manuKey is a parameter used to generate AES secret key in combination with the token, which is downloaded from the OpenHarmony compatibility platform.

Convert ASCII code to hexadecimal through tools.

Preset in the return value of HalGetManufactureKey interface.

2. HalGetProdId
ProductId is a parameter that is used to generate AES secret key together with the token, which can be viewed on the OpenHarmony platform.

Preset in the return value of HalGetProductId interface

3. HalReadToken 和 HalWriteToken
The manufacturer needs to implement the token read and write interface, write the token in the security partition of the device, and the partition will not be erased when the device is restarted or initialized.

4. HalGetProdKey
Reserved interface, which does not need to be implemented temporarily.

External interface

xts_device_attest_lite module external interface, the following table：

Interface Name	Description
int32_t StartDevAttestTask(void);	Start the main process of xts_device_attest_lite
int32_t GetAttestStatus(AttestResultInfo* attestResultInfo);	Get attest result

After the network connection is successful, the manufacturer needs to actively call the StartDevAttestTask function to enter the process of xts_device_attest_lite. By querying the GetAttestStatus interface, you can get the results of device attest.

Compilation instruction

mini

hb set
hb build --gn-args build_xts=true

small

LiteOS：

hb set
hb build --gn-args build_xts=true

Linux:

hb set
hb build --gn-args build_xts=true

Repositories Involved

xts_device_attest

xts_device_attest_lite
